Products

Showing all 6 results

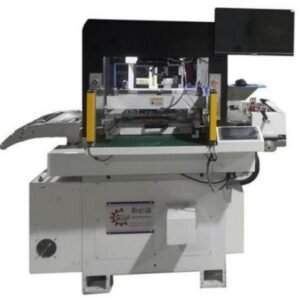

  • Automatic Roll-to-roll CCD Die Cutting Machine

    Automatic Roll-to-roll CCD Die Cutting Machine

    • Automatic roll feeding and tension control.

    • CCD vision system ensures high‑accuracy die‑cutting tolerance of ±0.025 mm

    • PLC‑controlled system with touch‑screen interface for simplified operation

    • Fast job change‑over and quick setup

    • High‑output performance with maximum production speed up to 120 cycles/min

    • Supports in‑line laminating, slitting and sheeting processes

    • Designed for manufacturing control panels, membrane switches, digital‑display overlays and more

    Read moreDone

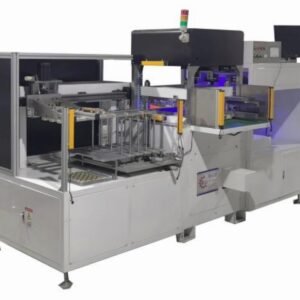

  • Automatic Sheet-fed CCD Die Cutting Machine

    Automatic Sheet-fed CCD Die Cutting Machine

    • Automatic sheet feeding and stacking

    • CCD vision system ensures high‑accuracy die‑cutting tolerance of ±0.025 mm

    • Maximum die‑cutting pressure of 25 tons enables processing of thick‑gauge materials

    • PLC‑controlled system with touch‑screen interface for simplified operation

    • Fast job change‑over and quick setup

    • Customizable die‑cutting dimensions

    Read moreDone

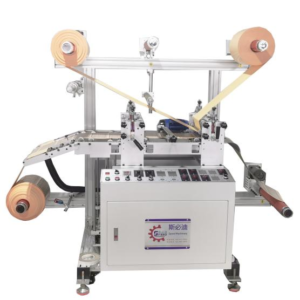

  • Laminating Machine

    Laminating Machine

    • 2,3,4 Laminating Units for option

    • Safe for processing heatsensitive materials, no heating required

    • Features simple rollerpressure operation,Requires minimal maintenance with low energy consumption

    • Accommodates a broad range of substrates

    • Delivers dustfree, clean lamination results

    • Produces instant readytouse finished outputs

    • Specializing in the processing of control panel, membrane switch, digital display overlay, PCB, FPC, etc.

    Read moreDone

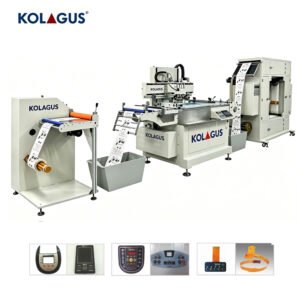

  • Roll-to-roll Screen Printing Machine

    Roll-to-roll Screen Printing Machine

    • 1,2,3,4 Color Printing

    • Max. speed: 1500pcs/h, 2000pcs/h

    • CCD positioning system ensure the accuracy of ±‌ 0.02mm

    • Max printing size: 400mm×500mm/500mm×700mm

    • 50m,60,90m drying oven for option

    • Specializing in the printing of control panel, membrane switch, digital display overlay, PCB, FPC, etc.

    Read moreDone
  • Sheet -fed Screen Printing Machine

    Sheet -fed Screen Printing Machine

    • 1,2,3,4 Color Printing

    • Max. speed: 1500pcs/h, 2000pcs/h

    • CCD positioning system ensure the accuracy of ±‌ 0.02mm

    • Max printing size: 400mm✖️500mm/500mm✖️700mm

    • 50m,60,90m drying oven for option.

    Read moreDone

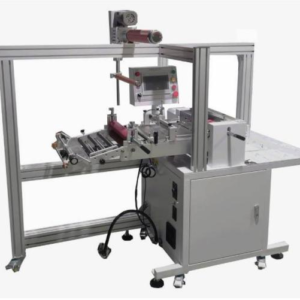

  • Sheeting Machine

    Sheeting Machine

    • Continuous roll‑to‑sheet conversion

    • High‑precision length cutting,high‑speed output

    • Integrated waste‑removal system

    • Automatic stacking & pile delivery

    • Multi web‑form‑material compatibility

    • Minimal manual handling, PLC‑controlled user‑friendly operation

    • Specializing in the processing of control panel, membrane switch, digital display overlay, PCB, FPC, etc.

    Read moreDone
