Automatic Sheet-fed CCD Die Cutting Machine
-
Automatic sheet feeding and stacking
-
CCD vision system ensures high‑accuracy die‑cutting tolerance of ±0.025 mm
-
Maximum die‑cutting pressure of 25 tons enables processing of thick‑gauge materials
-
PLC‑controlled system with touch‑screen interface for simplified operation
-
Fast job change‑over and quick setup
-
Customizable die‑cutting dimensions
Description

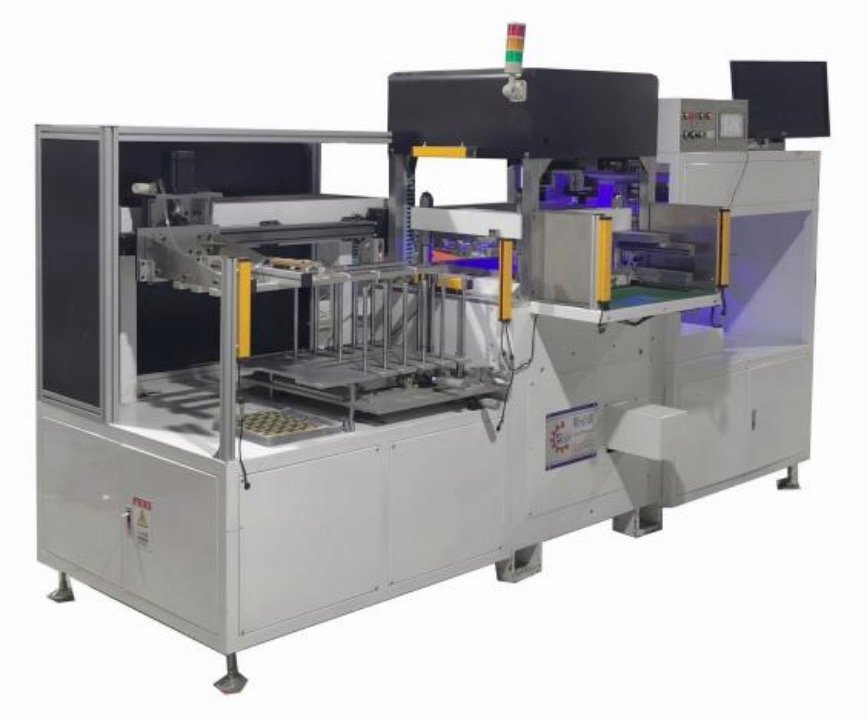

The Sheet‑to‑Sheet CCD Die Cutting Machine is a high‑precision, high‑efficiency automatic die cutting system built for high‑volume batch processing of sheet‑fed flexible materials. Fitted with dual CCD moving platforms at the die‑cutting station, it incorporates a high‑precision XY alignment stage to deliver consistent, reliable positioning accuracy.It is specializing in production of control panel, membrane switch, digital display overlay.
Features
-
Equipped with high precision CCD vision alignment system to achieve ±0.025mm accuracy
-
Automatic sheet feeding and stacking Minimizes manual‑handling requirements
-
Compatible with both rigid and flexible sheet‑form materials
-
High pressure flat‑bed die‑cutting ensures consistent and repeatable cutting performance
Technical Parameters
Model
|
SPD-CCDSH-350
|
SPD-CCDSH-450
|
Max. Die-cutting Size
|
350*350MM
|
420*450mm
|
Max. Feed width
|
350mm
|
420mm
|
Min Die-Cutting size
|
80*80mm
|
80*80mm
|
Cutting Accuracy
|
±0.025mm
|
±0.025mm
|
Operating Speed
|
50-100 times/min
|
50-100 times/min
|
Power
|
3KW
|
7KW
|
Voltage
|
380V/110V
|
380V/110V
|
Overall Dimension
|
3500×1250×1850mm
|
3500×1450×1850mm
|
Total Weight
|
2000kgs
|
2500kgs
|
